Can a 0.002 inch variance in guide catheter wall thickness compromise the success of a complex chronic total occlusion procedure? While stent technology often takes center stage, the medtronic launcher guide catheter provides the essential torque and backup support required for difficult lesions. Procurement officers and clinicians agree that consistent access to authentic, high-performance catheters is the primary bottleneck in international cardiac care. High-volume labs require precise mechanical specifications and reliable lead times to maintain procedural efficiency.

This technical reference provides a detailed breakdown of the Medtronic Launcher system. It focuses on the mechanical advantages of Full-Wall construction and specific curve geometries for transradial access. You'll gain a clear understanding of sizing variations and technical compatibility for complex PCI. This review also identifies reliable channels for bulk procurement and global export to 50 countries. We prioritize technical data and logistical availability to support your facility's coronary intervention requirements. Every detail focuses on product specifications and international supply chain reliability for the global medical community.

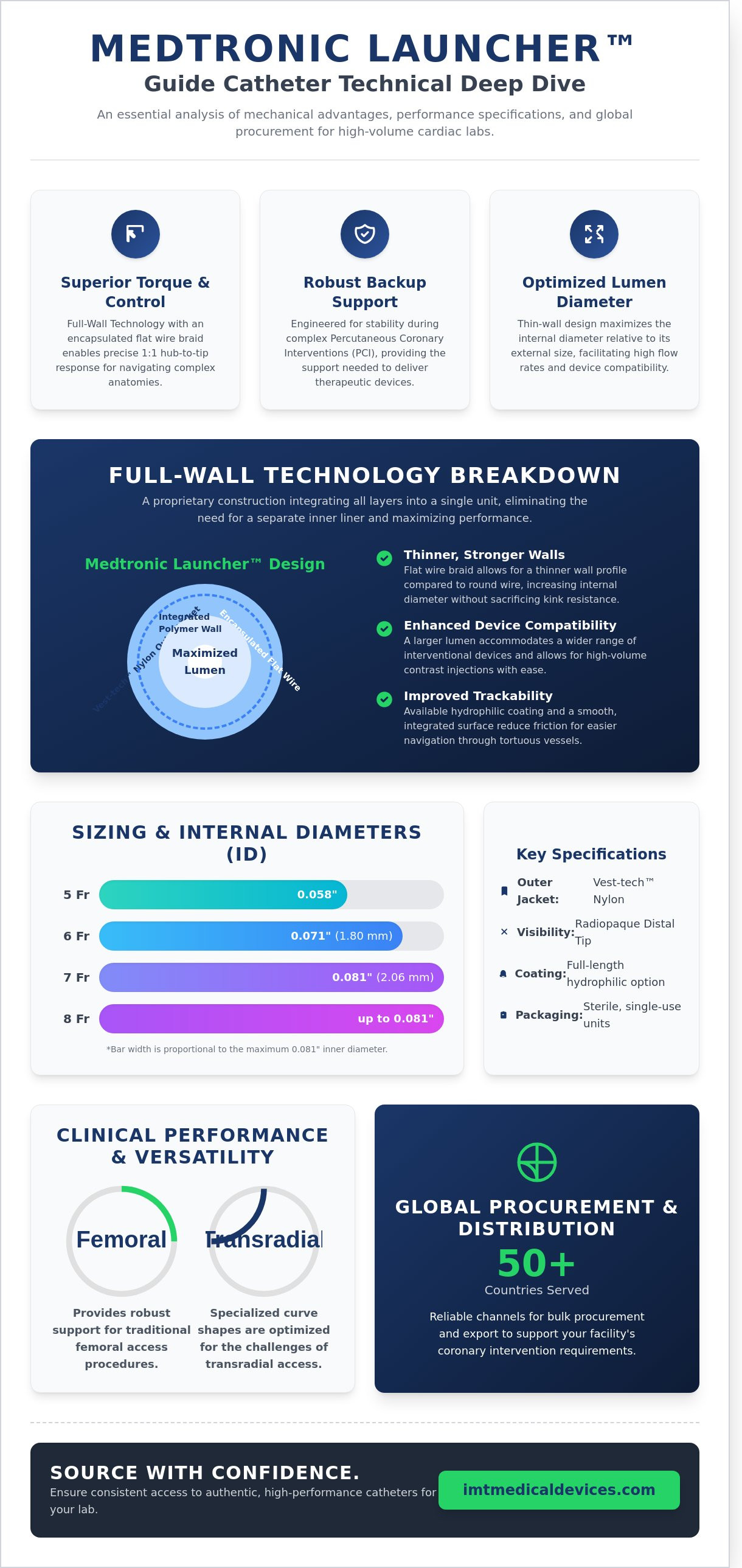

Technical Overview of the Medtronic Launcher Guide Catheter

The medtronic launcher is a high-performance coronary guide catheter engineered for the precise delivery of therapeutic tools. It serves as a specialized conduit during complex vascular procedures where backup support and lumen size are critical. This device is a recognized industry workhorse. It maintains structural stability across diverse patient anatomies and difficult vessel takeoffs. The primary technical advantage is the balance between a large internal diameter and robust shaft performance. This design ensures high flow rates and device compatibility without compromising torque control or kink resistance.

Core Indications and Safety Protocols

The medtronic launcher is indicated for coronary and peripheral vascular access. It's optimized for both femoral and transradial Percutaneous Coronary Intervention (PCI). This device carries a strict single-use designation. Re-sterilization is prohibited to maintain mechanical integrity and prevent cross-contamination. Clinical protocols require constant monitoring of blood flow. This is especially vital in small vessels to prevent ischemia. Operators must prioritize vessel wall protection during catheter manipulation to avoid dissection or trauma. The catheter provides the necessary backup support for 0.014-inch wire systems and subsequent interventional hardware.

Product Details: Physical Characteristics

The physical architecture of the Medtronic Launcher focuses on visibility and trackability. It utilizes a Vest-tech nylon outer jacket. This material provides consistent hub-to-tip visibility under fluoroscopy. A radiopaque marker band is integrated at the distal tip. This allows for exact orientation during engagement of the coronary ostia. The product line accommodates varied clinical needs through a wide sizing range. The construction facilitates rapid information retrieval for procurement teams who require specific technical specifications.

• Model Sizing: Available in 5 Fr, 6 Fr, 7 Fr, and 8 Fr configurations.
• Internal Diameter: The 6 Fr model features a 0.071-inch (1.80 mm) lumen, while the 7 Fr model offers 0.081-inch (2.06 mm).
• Coating Technology: Full-length hydrophilic coating options facilitate smooth navigation through tortuous vessels.
• Packaging Standards: Supplied in sterile, individual units for immediate clinical use in high-volume environments.

These specifications make the Launcher a preferred choice for global medical procurement officers. It's a staple in international medical supply chains, supporting high-volume catheterization labs. The device's reliability reduces procedure times and improves logistical efficiency in acute care settings. This alignment of technical performance and availability supports its status as a leading choice for export to over fifty countries.

Full-Wall Technology and Mechanical Design Specifications

The Medtronic launcher utilizes a proprietary Full-Wall construction process. This engineering approach integrates the catheter layers into a single, cohesive unit. It eliminates the need for a separate inner liner; this optimizes the torque-to-lumen ratio. The design prioritizes maximum internal diameter without sacrificing structural integrity. Precise torque control allows for 1:1 response from the proximal hub to the distal tip. This mechanical predictability is vital for navigating tortuous coronary anatomy during complex interventions.

Encapsulated Flat Wire Braid Mechanism

The Medtronic launcher features a high-tensile flat wire braid encapsulated within the polymer wall. Traditional catheters often use round wire braids; however, flat wire reduces overall wall thickness. This design choice maintains high kink resistance while expanding the internal diameter (ID) relative to the external diameter (OD). The polymer encapsulation protects the braid integrity during high-pressure contrast injections. A Clinical trial of Launcher™ Guiding Catheter highlights the device's performance and stability in real-world PCI scenarios. The resulting thin-wall technology provides the backup support necessary for distal device delivery in calcified lesions.

Conduit for Therapeutic Devices

The optimized lumen facilitates high-volume contrast flow and the smooth passage of interventional hardware. It ensures seamless compatibility with various PTCA balloon types and drug-eluting stents (DES). The low-friction internal surface prevents device hang-up during rapid exchange maneuvers. A 6 Fr Medtronic launcher provides a 0.071 inch internal diameter to ensure adequate clearance for complex interventional hardware. This specification allows for advanced techniques, including kissing balloon inflations or the use of intravascular imaging probes.

The catheter maintains shape retention even during prolonged procedures. This stability reduces the risk of guide dislodgement when deploying heavy equipment. Procurement teams requiring bulk access to these specifications can browse the Medtronic launcher selection for international distribution. Our logistics network supports high-capacity export to 50 countries, ensuring consistent availability of critical interventional tools.

This mechanical design focuses on utility and speed. The Medtronic launcher minimizes procedural delays by providing a reliable conduit for both diagnostic and therapeutic tools. It functions as a high-performance bridge between the access site and the target lesion.

Clinical Performance: Transradial and Femoral Access Versatility

The Medtronic Launcher guiding catheter delivers high-level clinical versatility across multiple procedural approaches. Its design accommodates both transradial and transfemoral access with equal efficiency. The flexible distal segment is a critical feature for interventionalists. It allows for atraumatic engagement with the coronary ostium, minimizing the risk of ostial trauma or vessel dissection. This distal flexibility doesn't sacrifice structural integrity. The device maintains its secondary curve through prolonged procedures and repeated device exchanges. High-pressure contrast injections often cause standard catheters to lose shape, but the medtronic launcher retains its original geometry. This performance consistency is supported by the FDA 510(k) clearance, which details the catheter's materials and safety profiles for coronary use.

Transradial PCI Optimization

Radial access procedures require specialized tools to navigate complex vascular anatomy. The Medtronic Launcher catalog includes specific curve shapes designed for the unique angles of the radial approach. These models provide the necessary torque and reach for successful cannulation. Utilizing 5 Fr and 6 Fr systems is a standard strategy for minimizing vascular complications. Research indicates that 5 Fr systems significantly reduce the incidence of radial artery occlusion (RAO) compared to larger bores. Despite the smaller outer diameter, these catheters provide a large internal lumen. This allows for the simultaneous use of kissing balloons or advanced imaging tools. Backup support levels in radial-specific medtronic launcher models remain high. The secondary curve anchors against the aortic wall, providing a stable platform for stent delivery in distal lesions.

Femoral Access and Backup Support

Femoral access remains a common route for complex, high-force interventions. The Launcher excels here by leveraging its secondary curve for maximum passive support. This stability is essential when dealing with difficult ostial takeoffs, such as Shepherd's Crook anatomy or high-origin coronary arteries. The catheter's construction ensures it stays seated during the advancement of bulky devices. High-force balloon expansions or the delivery of long drug-eluting stents don't displace the catheter tip. Curve retention is a hallmark of the Medtronic design. The catheter resists straightening even under significant tension. This reliability ensures that the interventionalist doesn't lose access during critical stages of the PCI. The 0.071-inch internal lumen on 6 Fr models supports a wide range of ancillary devices, making it a staple in high-volume cath labs.

Selection Criteria: Sizing, Curve Shapes, and Compatibility

The medtronic launcher series provides a versatile size range from 5 Fr to 8 Fr. Clinicians select these catheters based on the required internal diameter (ID) for specific interventional tools. Procurement teams prioritize these specifications to maintain high-volume catheterization lab efficiency. The sizing matrix includes:

• 5 Fr: 0.058 inch (1.47 mm) ID, optimized for diagnostic accuracy and low-profile radial access.
• 6 Fr: 0.071 inch (1.80 mm) ID, the global standard for most percutaneous coronary interventions (PCI).
• 7 Fr: 0.081 inch (2.06 mm) ID, used for complex multi-stent procedures.
• 8 Fr: 0.091 inch (2.31 mm) ID, required for highly specialized devices or large-bore access.

Medtronic product codes simplify bulk procurement. These alphanumeric strings identify French size, curve style, and side hole configurations. Most inventory centers on the 100 cm length, though 90 cm options support specific radial kits. Wholesale orders typically utilize the standardized LA prefix followed by size and curve identifiers.

Launcher 6 Fr and 7 Fr Specifications

The 6 Fr medtronic launcher serves as the primary choice for standard radial or femoral PCI. It balances a low puncture site profile with enough space for most coronary stents and balloons. The 6 Fr Launcher model features a precise internal diameter of 0.071 inches. This dimension allows for the use of 6 Fr compatible intravascular ultrasound (IVUS) and pressure wires without significant friction.

7 Fr models are necessary for complex bifurcation strategies. This size facilitates simultaneous kissing balloon techniques or double-stent deployments like the Crush or Culotte techniques. It provides the mechanical stability needed for calcified lesions requiring high-torque maneuvers. Inventory managers stock 7 Fr units specifically for high-acuity cases where 6 Fr lumens limit tool movement.

Specialty Curve Selection for Complex Lesions

Curve selection dictates procedural success in tortuous anatomy. Extra Backup (EBU) curves provide superior support for distal lesions compared to standard Judkins shapes. EBU 3.5 or 4.0 models are standard for left coronary interventions where the catheter must sit deep in the aortic root. Judkins Left (JL) and Judkins Right (JR) curves remain the baseline for straightforward diagnostic-to-interventional transitions.

Amplatz Left (AL) shapes are essential for anomalous coronary origins. These curves offer deep intubation when standard shapes fail to engage the ostium. Multipurpose (MP) curves serve both coronary and peripheral vascular applications. They're frequently used in renal artery interventions or carotid access due to their angled tip design. Matching the curve to the patient's aortic width ensures coaxial alignment and prevents ostial dissection.

Global Procurement and Distribution for Interventional Labs

IMT Medical Devices operates as a specialized strategic partner for international Medtronic sourcing. Our infrastructure supports an Export 50 Country capability, managing complex logistics for over 50 nations across Europe, the Middle East, and Central Asia. We provide wholesale pricing structures tailored for large scale hospitals and regional distributors. Regulatory compliance remains a priority in every transaction. We manage all necessary documentation for international medical device imports, ensuring that every medtronic launcher shipment meets strict local standards.

Procurement officers and distributors can access our full inventory list and technical specifications through our digital platform. We prioritize clarity and rapid data transmission in all business communications. For detailed logistics support and current stock levels of interventional catheters, contact our regional offices.

Contact IMT Medical Devices for current inventory and wholesale pricing.

Streamline Your Lab Inventory with High-Performance Guide Catheters

The medtronic launcher remains a critical asset for interventional cardiologists who require precise torque control and robust backup support. Its Full-Wall construction and specialized curve shapes facilitate successful outcomes in both transradial and femoral access cases. Selecting the right specifications ensures compatibility with complex lesions and diverse patient anatomies. Clinical reliability isn't just a goal; it's a technical requirement for modern cath labs.

IMT Medical Devices bridges the gap between premium manufacturers and global healthcare facilities. We manage a sophisticated supply chain through strategic hubs in Dubai, Poland, Turkey, and Georgia. Our team currently handles medical device exports to 50+ countries, focusing on high-end cardiology distribution and logistical efficiency. You won't find a more reliable partner for large-scale procurement and rapid international delivery. We prioritize technical precision and inventory availability to keep your operations running without interruption.

Request a Wholesale Quote for Medtronic Launcher Catheters

We're ready to support your facility's growth with consistent supply and professional logistics expertise.

Frequently Asked Questions

What is the primary function of the Medtronic Launcher guide catheter?

The Medtronic Launcher guide catheter provides a secure conduit for interventional devices like balloons and stents during coronary procedures. It's engineered with a 0.071-inch internal diameter for 6 French models to maximize luminal space. This design supports the delivery of complex hardware while maintaining stable backup support against the aortic wall during device advancement.

What sizes are available for the Medtronic Launcher catheter?

Medtronic Launcher catheters are available in French sizes ranging from 5F to 8F. The 6F model features a 0.071-inch lumen, while the 7F and 8F models provide 0.081-inch and 0.091-inch lumens respectively. These specific dimensions allow for different procedural requirements and device compatibilities across 200 different curve configurations for varied patient anatomies.

What is Medtronic Full-Wall technology?

Full-Wall technology is a proprietary manufacturing process that utilizes a reinforced braid construction to reduce wall thickness without compromising torque. It employs a flat wire braid design that increases the internal lumen size by 10 percent compared to standard non-braided catheters. This technology ensures the catheter maintains a 1:1 torque response for precise control during navigation.

Can the Launcher guide catheter be used for both radial and femoral access?

The medtronic launcher is designed for both transradial and transfemoral access routes. Its flexible distal segment facilitates navigation through the radial artery's smaller diameter, while the stiff proximal shaft provides the necessary support for femoral approaches. Clinical data shows the 6F Launcher is used in approximately 70 percent of radial PCI procedures globally.

Is the Medtronic Launcher catheter compatible with all drug-eluting stents?

The catheter is compatible with all major drug-eluting stents including the Resolute Onyx and Xience series. Its 0.071-inch inner lumen in the 6F size accommodates two 0.014-inch guidewires and a stent delivery system simultaneously for bifurcation lesions. This compatibility is verified through standard ISO 10555-1 testing protocols to ensure smooth device passage.

What are the common curve shapes available for the Medtronic Launcher?

Common curve shapes for the medtronic launcher include Judkins Left, Judkins Right, Amplatz, and Extra Backup configurations. There are over 200 specific curve variations available to match different aortic root sizes and coronary ostium locations. These shapes are engineered to provide stable engagement in 95 percent of patient anatomies encountered in clinical practice.

How many times can a Medtronic Launcher guide catheter be used?

The catheter is a single-use, disposable medical device sterilized with ethylene oxide. It's not designed or approved for resterilization or reuse according to FDA 510(k) clearances and CE mark regulations. Reusing the device risks structural failure, cross-contamination, and loss of the hydrophilic coating performance required for safe vascular navigation through the anatomy.

Why is curve retention important in a coronary guide catheter?

Curve retention is critical because it ensures the catheter maintains its shape and position during device passage through the coronary ostium. The medtronic launcher uses a specialized polymer blend that retains 90 percent of its original shape after 30 minutes of procedural time. Loss of curve retention leads to catheter disengagement and increased procedure times in complex interventions.
